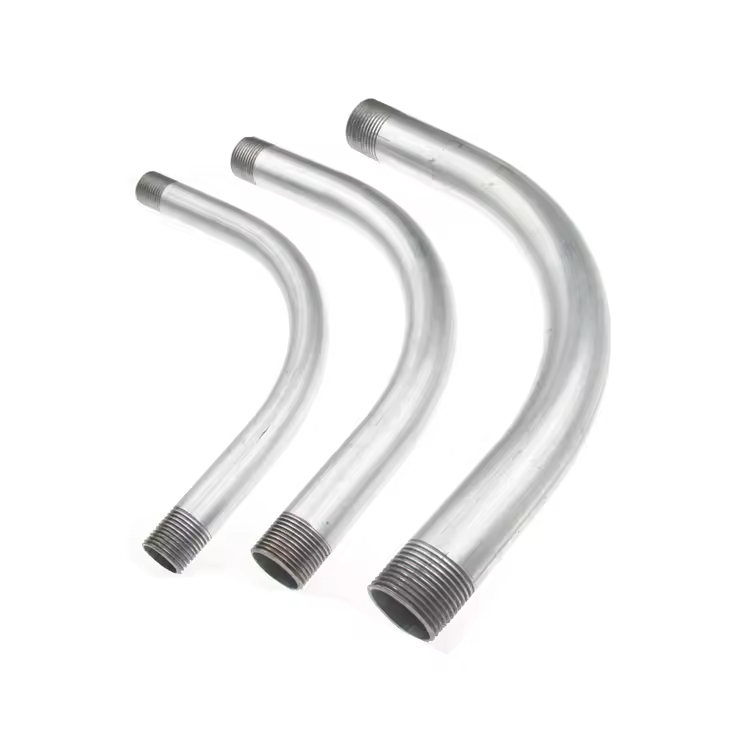

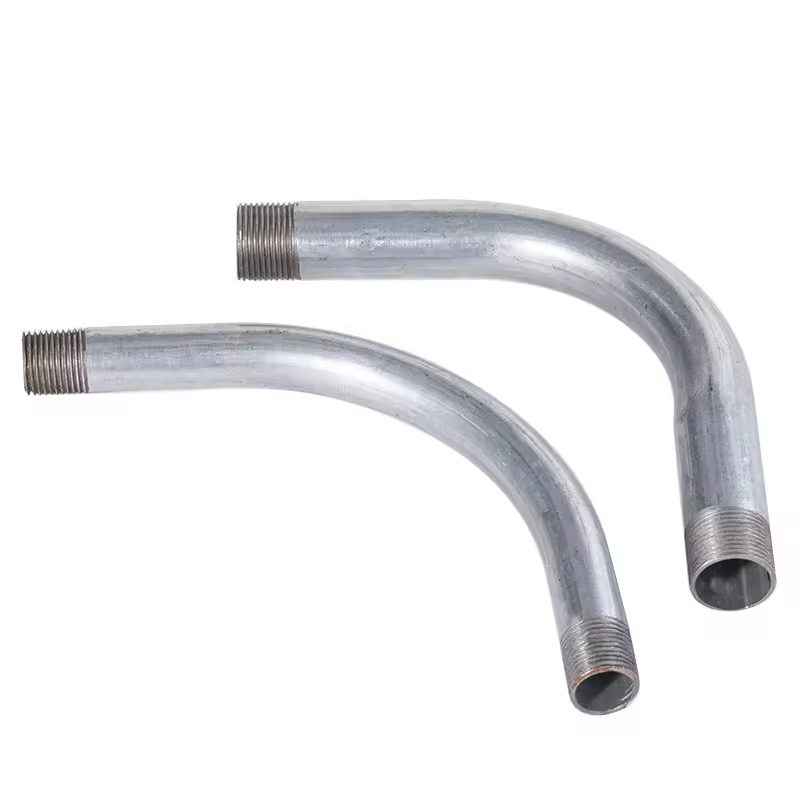

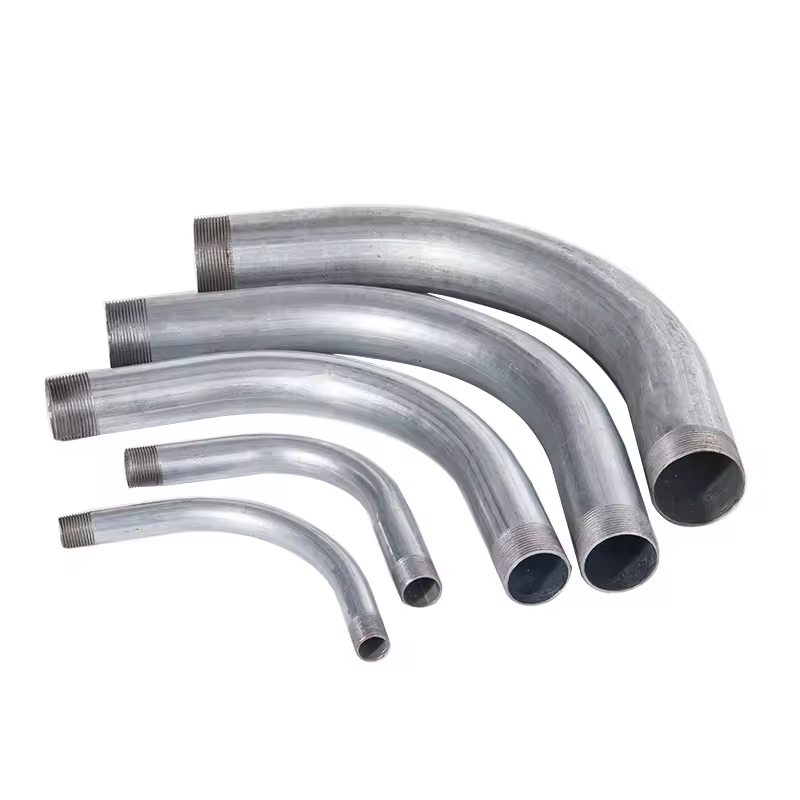

IMC Conduit Elbow GI Elbow 45 Degree

EMT/RSC Elbow

 EMT Elbow is used to protect and route electrical wiring in a building or structure, it is produced according to the

standard of ANSI C80.3(UL797). The interior surface of our conduit is free from defect with a smooth welded seam. It is
pre-galvanized /hot dipped galvanized inside and outside, so that metal-to-metal contact and galvanic protection against corrosion are provided, and the surface of the conduit is coated with a clear lacquer coating to inhibit white rust and increase corrosion resistance.

Certificate:
* UL Certificate No. : E365811
* ISO9001 Certificate No.: 0350221Q30581R1M
Application:
Type: 45 or 90 degree, NPT threaded and non-threaded.
Surface finished: Pre-galvanized /Hot Dip Galvanized(HDG).
Suitable for connecting 1/2"-4" EMT Conduit/IMC/RIGID/BS Conduits.
Through the electrical wires with the purpose of protection for the electrical raceway system.
Installed on conduit raceways for the interconnection of conduit runs and other fittings.
Our Advantage:
▶ More than 17 years professional original factory experience.
▶ Whole trade size satisfied 1/2", 3/4", 1", 1-1/4",1-1/2", 2", 2-1/2", 3", 3-1/2" and 4"
▶ Smooth continuous raceway interior surface for easy wire pulling.
▶ Excellent ductility, providing for uniform bending and cutting.
▶ Corrosion resistance design protect the surface from corrision.
▶ Advanced machinery and equipment, professional technology and service team.
